MAX HN120 PowerLite High Pressure Concrete Pinner up to 2-1/2"
Details

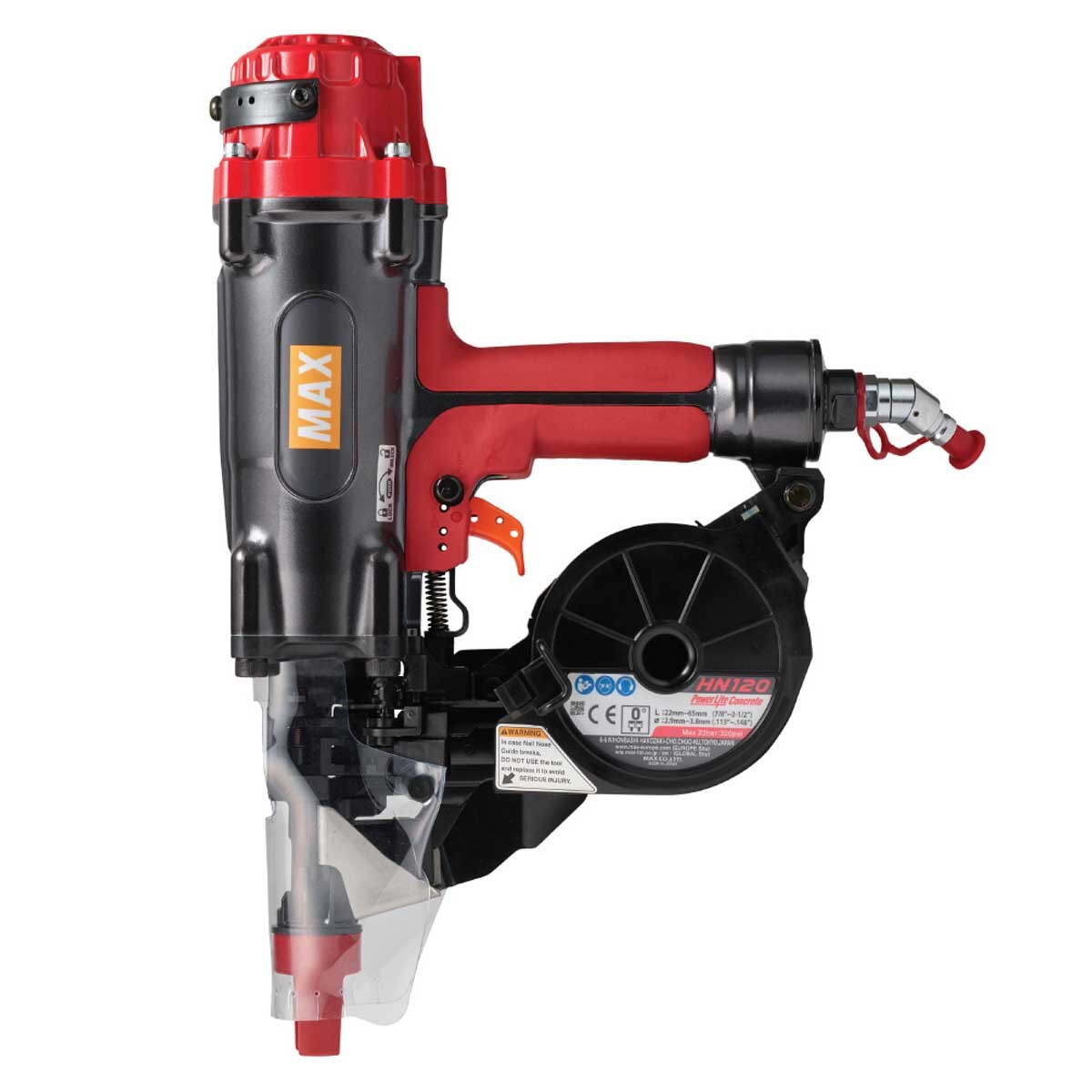

MAX HN120 PowerLite® High Pressure Concrete Pinner up to 2-1/2"
At only 6.4 lbs., the safety equipped and lightweight Powerlite® HN120 concrete pinner is lighter than most competitor’s tools without sacrificing driving power. Unlike powder actuated tools, this tool is faster, more efficient and doesn’t require a license or powder loads to operate. Backed by the power of a 500 PSI Powerlite® compressor the HN120 can easily drive pins, through a multitude of materials including metal, steel, concrete and wood, with minimal recoil. MAX is committed to manufacturing reliable tools that have been designed to deliver enhanced performance while making sure that users can carry out safe operations.
Applications

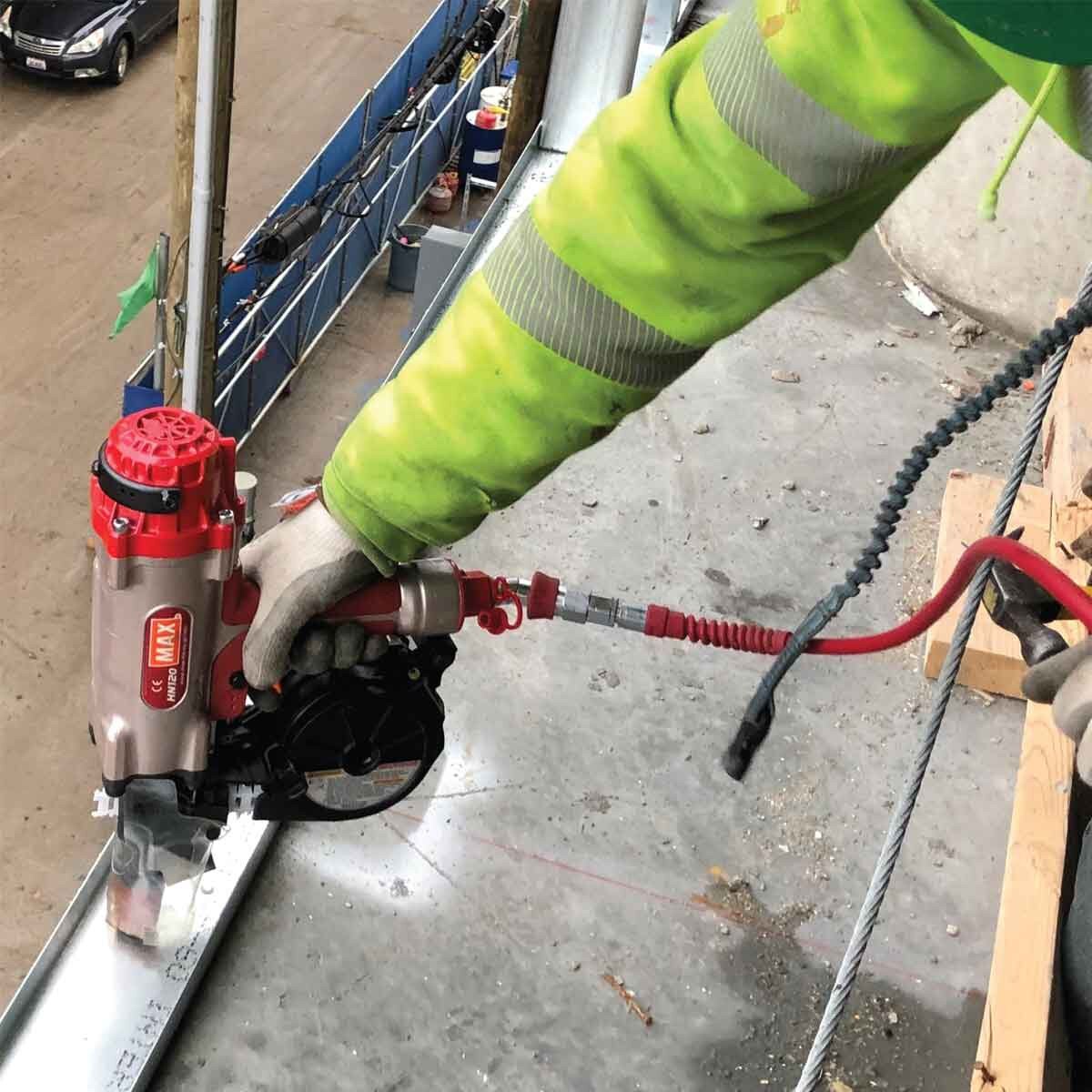

- Metal track to concrete
- Metal track to steel

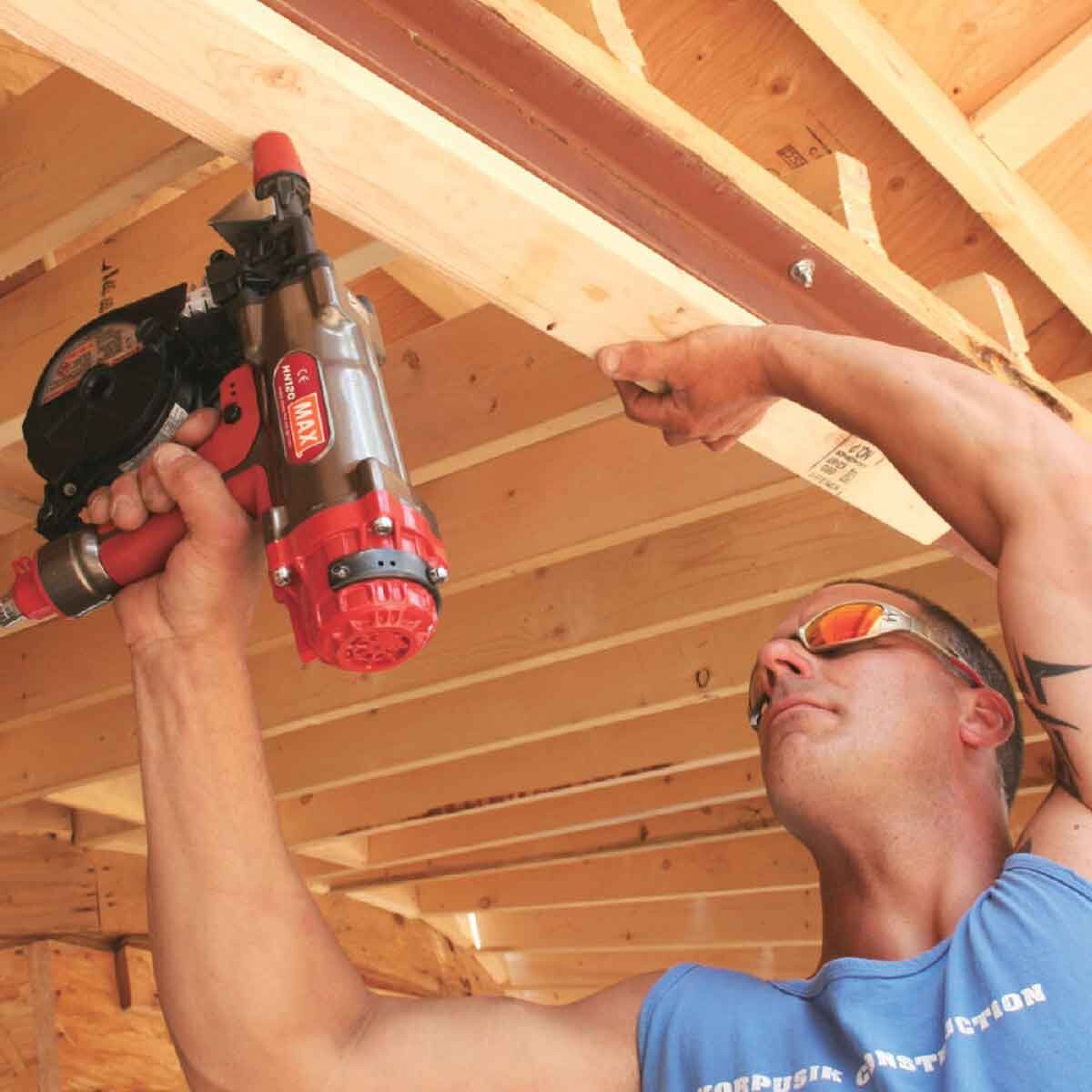

- Wood to concrete
- Wood to steel I beam
- Furring
FEATURES
- SAFER THAN CONVENTIONAL CONCRETE PINNERS
The HN120 is a faster, safer and a more cost effective alternative to powder actuated tools, and doesn’t require a license to operate. - WIDE RANGE OF FASTENERS AVAILABLE
The MAX HN120 can shoot a variety of fasteners into wood, steel, or concrete including the AccuEmbed .157" Pins. - VERY POWERFUL

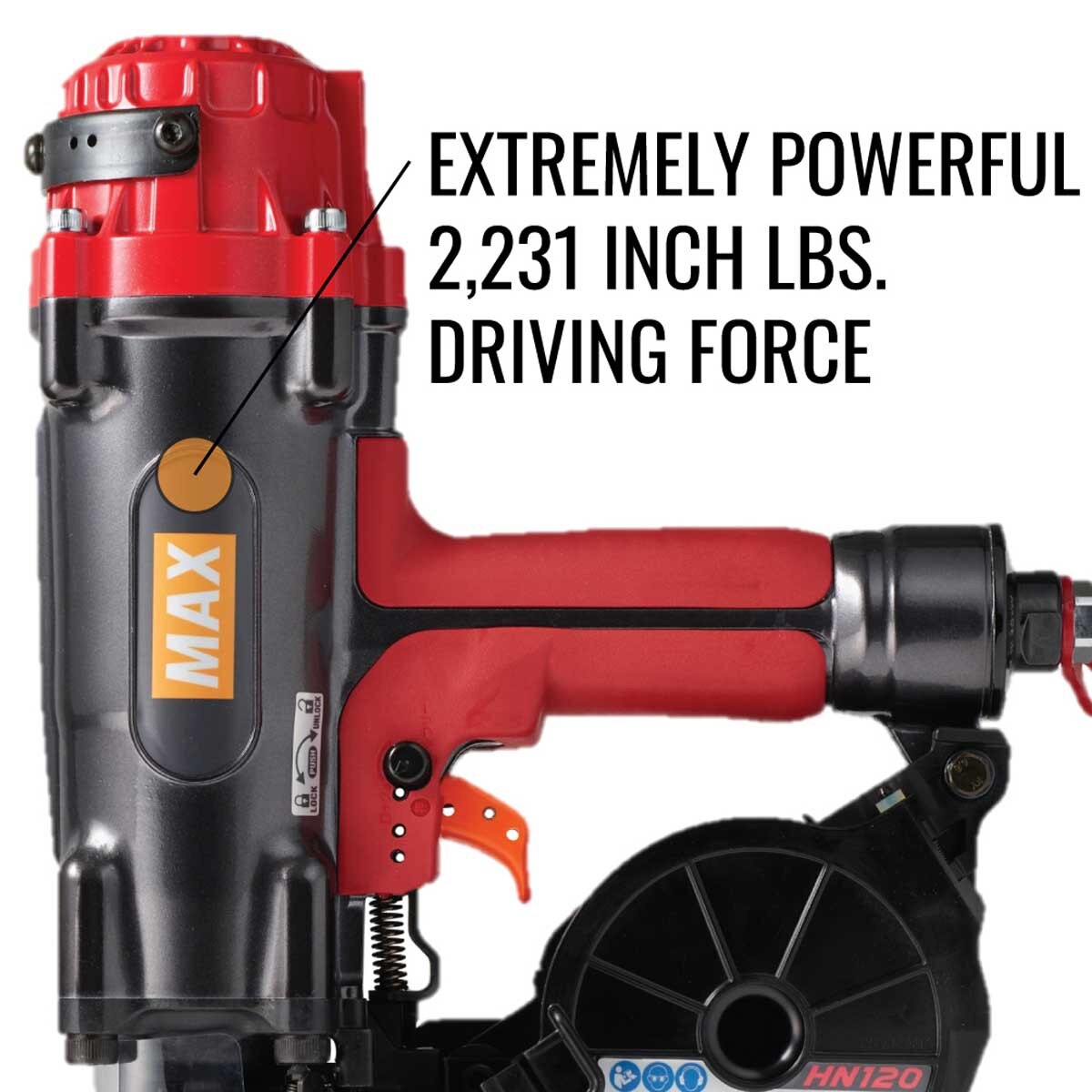

Drives .307" head pins into concrete or steel with 2,231 inch lbs. driving force. - LIGHTWEIGHT WITH LESS RECOIL
At at only 6.4lbs, this lightweight tool has less recoil than P.A.T tools. - LESS MAINTENANCE TOOL

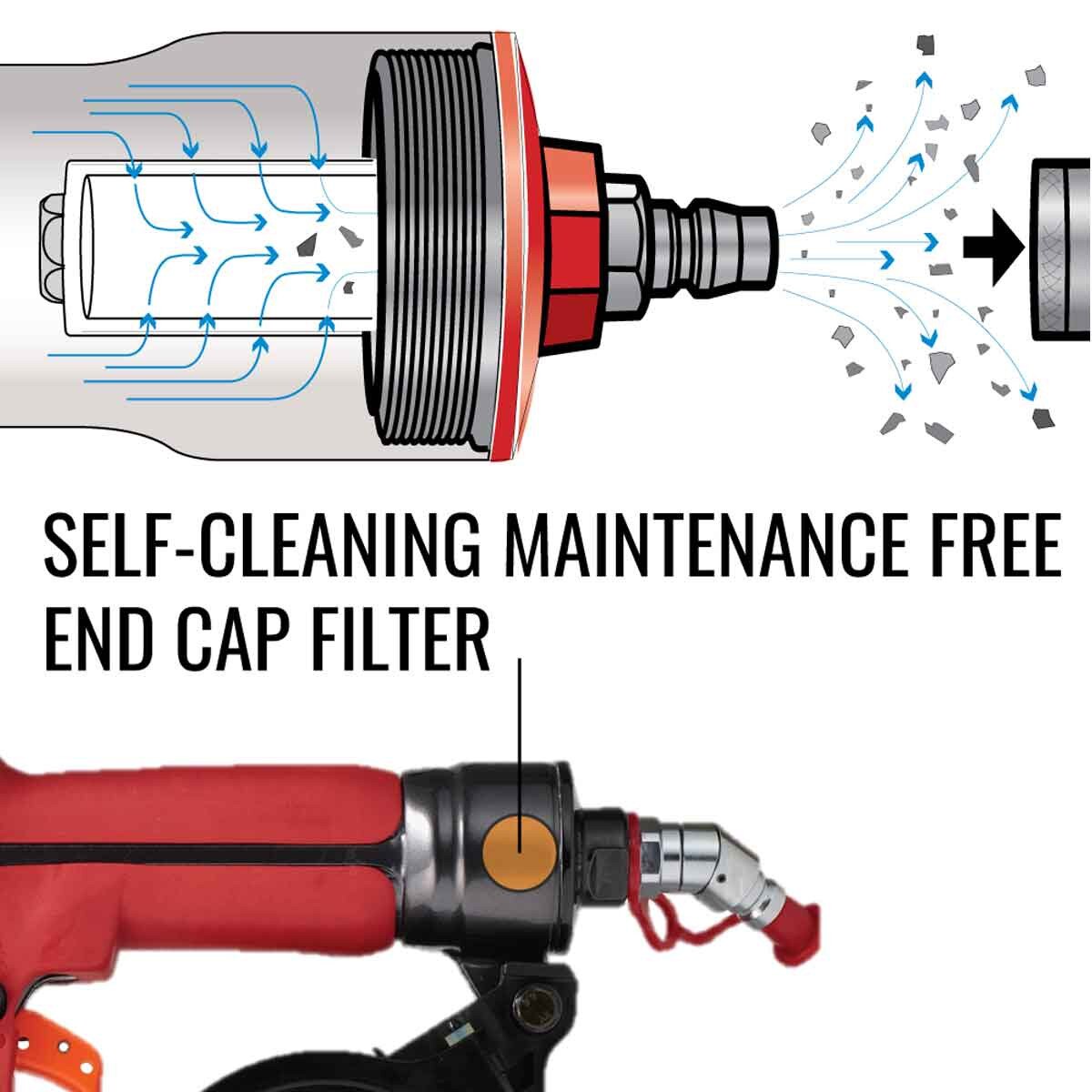

The patented, self-cleaning maintenance free end cap filter captures foreign substances before they can enter the tool and automatically ejects them when the air hose is disconnected. - SELF-CLEANING FILTER FOR RELIABLE OPERATIONS

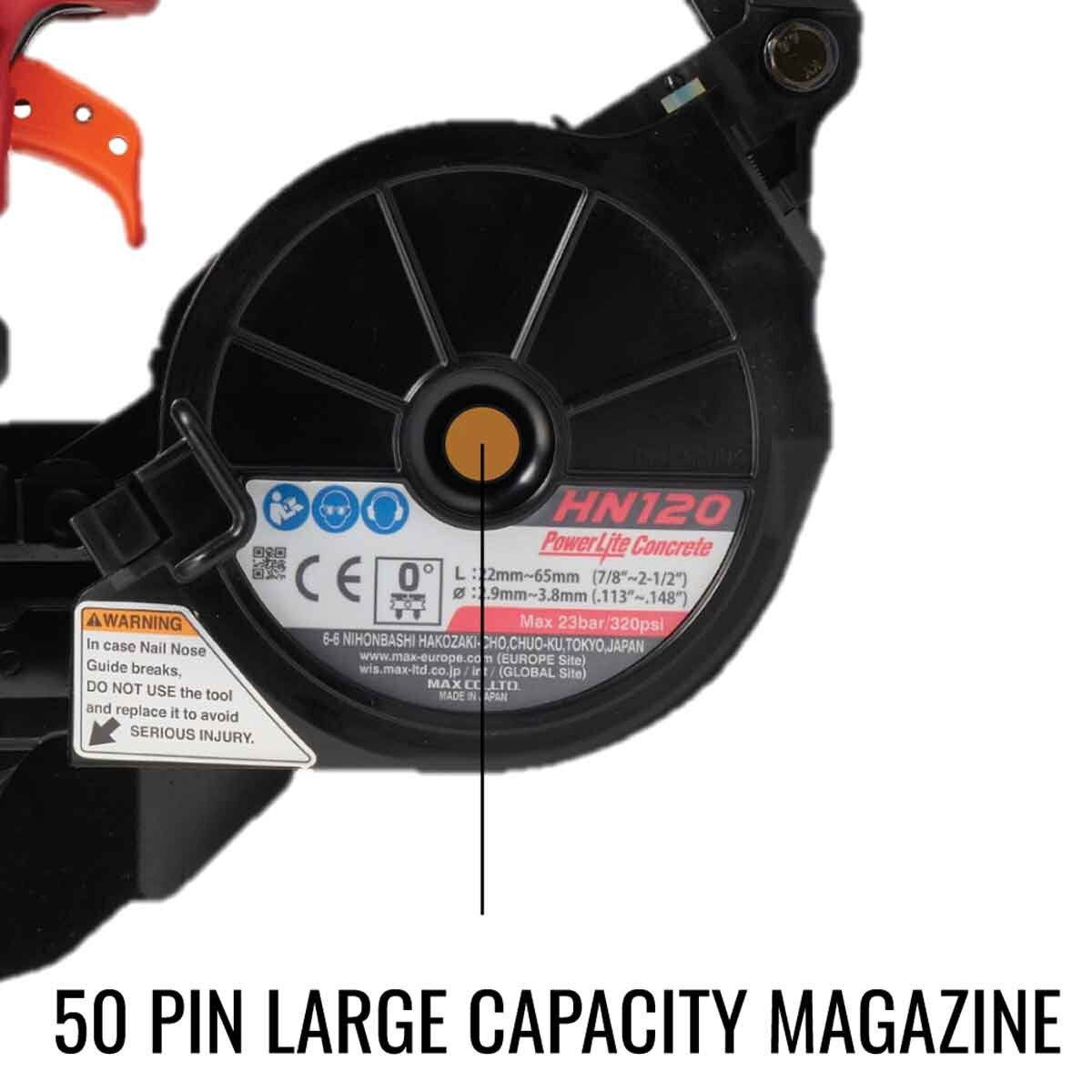

The patented, self-cleaning maintenance free end cap filter captures foreign substances before they can enter the tool and automatically ejects them when the air hose is disconnected. - LARGE CAPACITY MAGAZINE
The HN120 holds 50 pins and saves reloading time and operating cost.
SPECIFICATIONS
- WEIGHT: 6.4 lbs
- DIMENSIONS: 15 3/4"(H) x 3 3/8"(W) x 12 3/8"(L)
- MINIMUM OPERATION PRESSURE: 210 PSI
- MAXIMUM OPERATION PRESSURE: 320 PSI
- AIR INLET SIZE: 7/16"
- MAGAZINE CAPACITY: 50
- DEPTH CONTROL: No
- JAM CLEARING: No
- TRIGGER TYPE: Sequential Fire Trigger
- AIR CONSUMPTION (FT3/CYCLE): 0.166

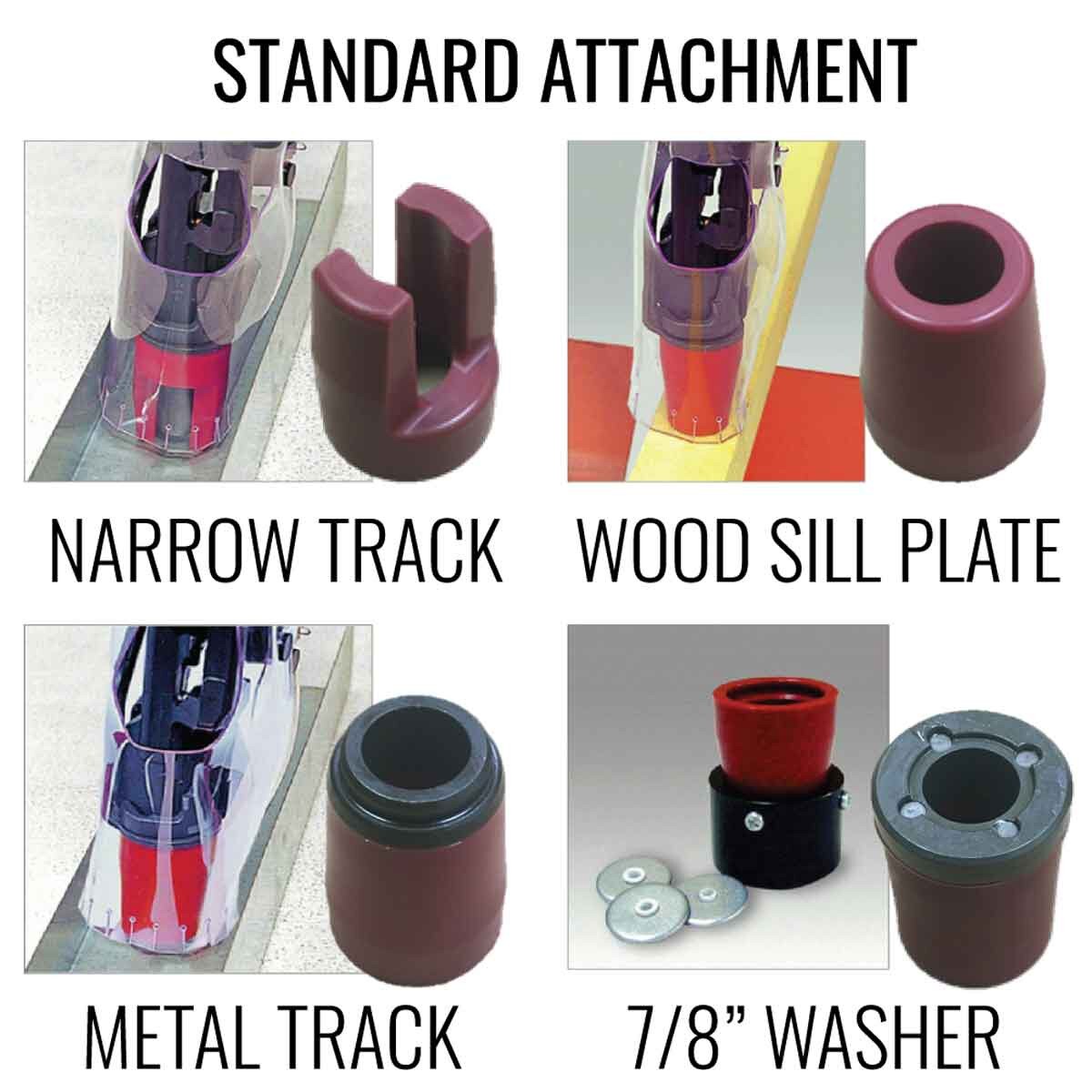

- ACCESSORIES: Safety glasses, Nose attachments, Carry case

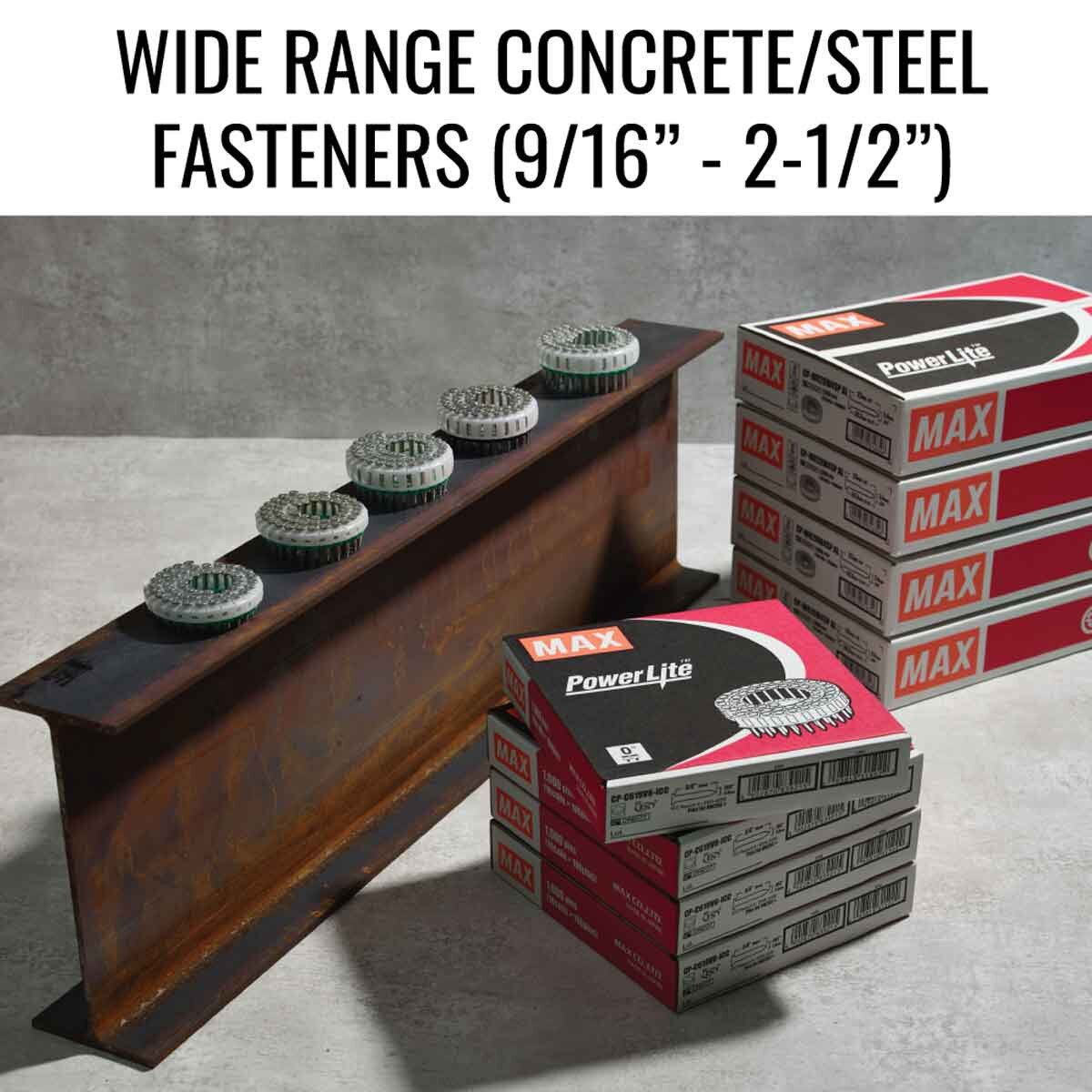

FASTENERS
- CP-C .157" AccuImbed series Concrete Pin
- CP-C .148" series Concrete Pin
- CP-W .133" series Concrete/ Steel Pin
- CAP .133" series Cold Form Steel Pin
