7" OMG RetroDriller Fastener 500ct | RDDP007B

7" RetroDriller Fasteners OMG RDDP007B

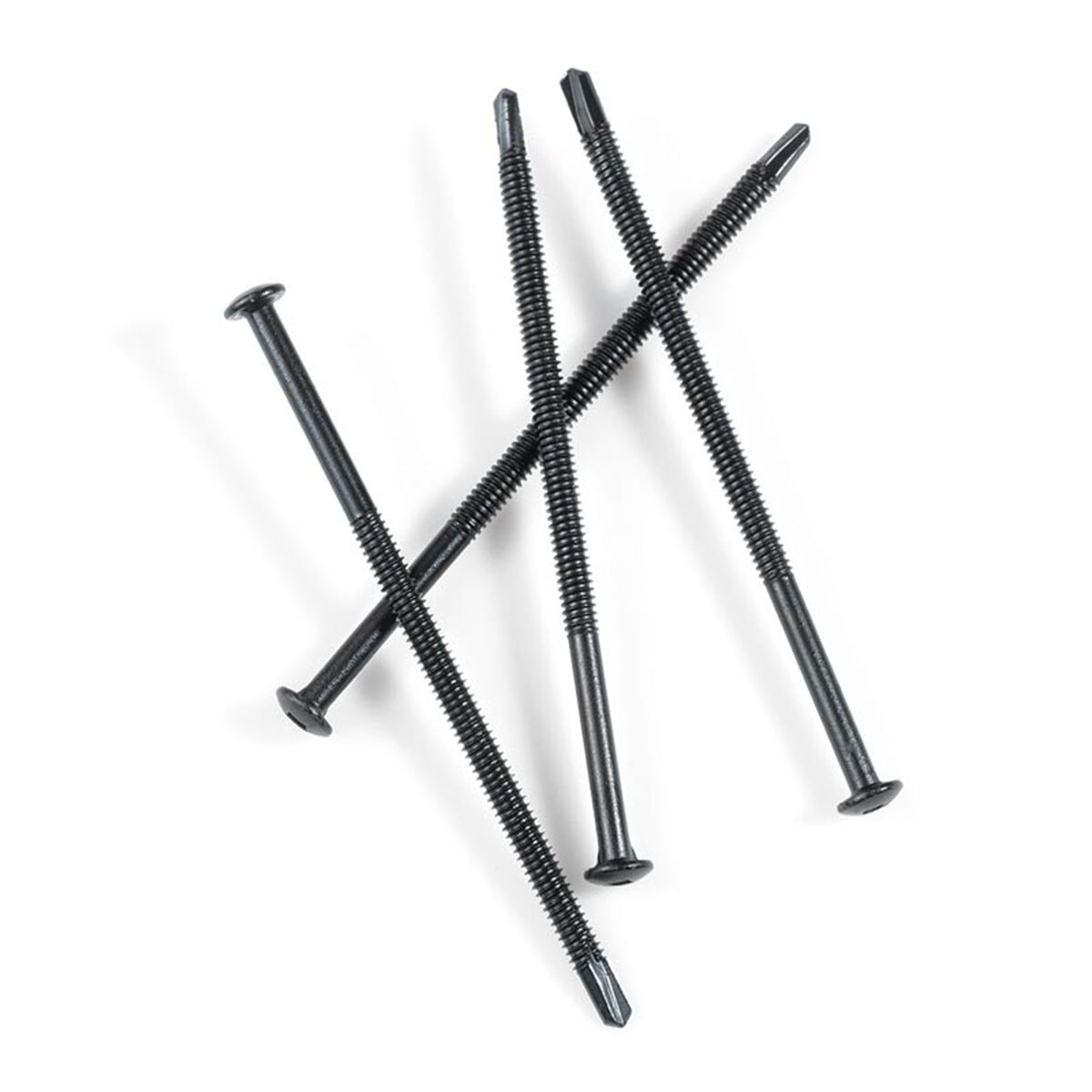

The OMG RetroDriller Fastener is designed for attaching single-ply membrane systems to structural steel purlins in standing seam metal roof retrofit applications.

The OMG RetroDriller Fastener has a 1/2-in. (13mm) drill point that quickly drills into structural purlins. It is Factory Mutual approved.

Physical Data

• Fastener Length: 7" (175-mm)
• Thread Length: 3" (76-mm)
• Shank Diameter: .194-in. (4.92-mm)
• Thread Diameter: .230-in. (5.84-mm)
• Head Diameter: .425-in. (10.79-mm)
• Head Style: #3 Square Drive Low-Profile Truss Head
• Point Type: 1/2-in. (13-mm) drill point.
• Weight 31 pounds

Features & Benefits

• Depending on hardness/tensile of the purlins or bar joist, the RetroDriller Fastener may be used on steel up to 3/16-in. (5mm) thick.
• Low profile head has a smooth surface to ensure that there is no damage to the membrane.
• Each RetroDriller Fastener has a 1/2-in. (13mm) drill point. Fastener must be installed with a minimum 1" (25mm) penetration through the purlin.
• FM Approved.

Coating

• OMG CR-10 corrosion resistant coating passes the corrosion requirements of FM Approval Standard 4470 and ETAG 006.

Application

• The OMG RetroDriller Fastener must penetrate through the purlin a minimum of 1-in. (25mm).
• Using a screw gun with a maximum of 1800 RPM, drive the fastener through the purlin until a slight depression is seen around the plate.
• Note: Caution should be taken not to overdrive the fastener causing stress plate surface to deflect more than 1/16-in. (1.6mm). Prior to job bid, contact OMG to visit the job site for pullout test.

Plates & Accessories

• Use 3-in. (80mm) RhinoBond® (TPO or PVC) insulation plate or other plate as appropriate.
