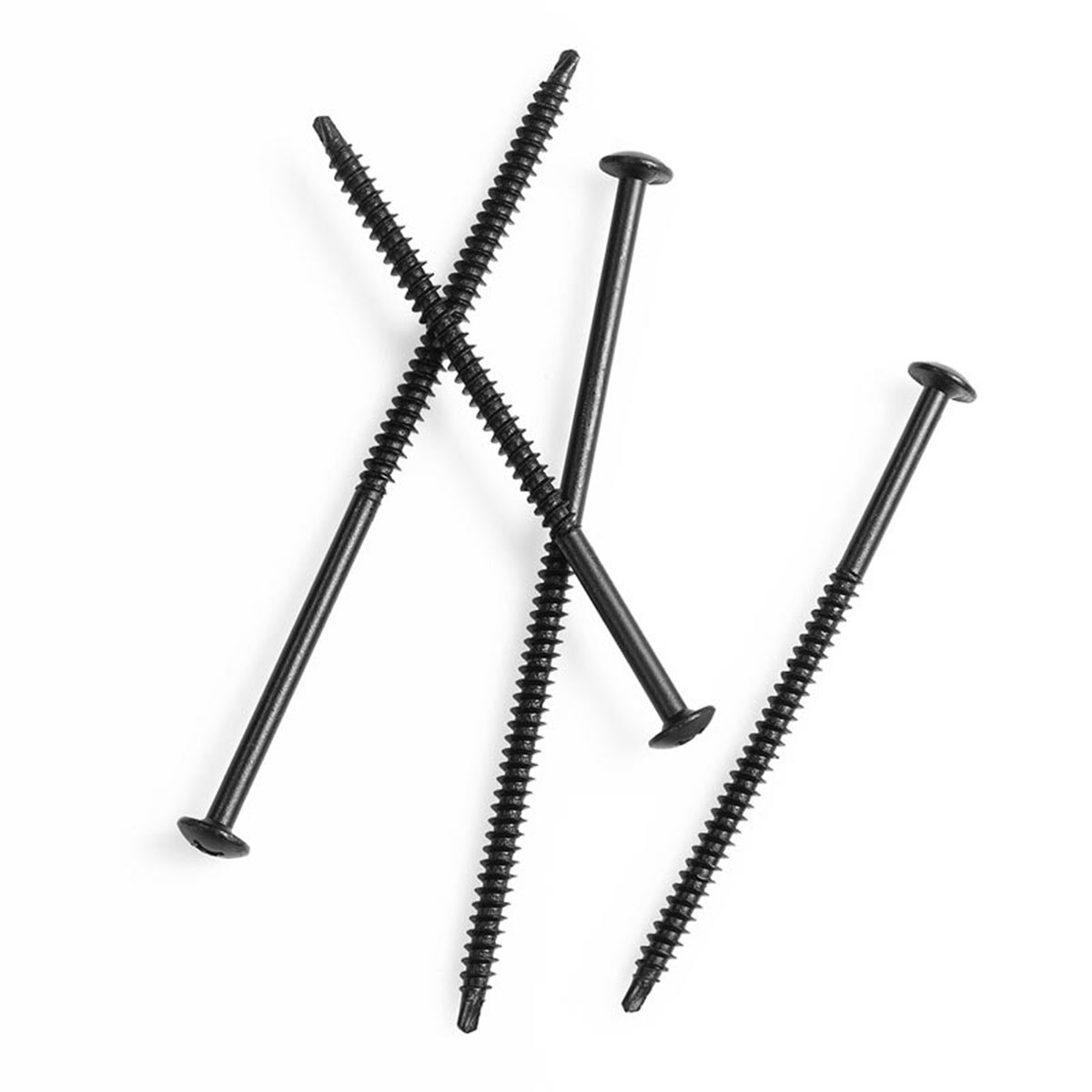

3" OMG RoofGrip ROOFING FASTENER 1,000ct | RGDP003B

3" Phillips Truss Head Roofing Screws OMG RGDP003B

The OMG Standard RoofGrip Drill Point Fastener is designed to secure roofing membrane and insulation to 18 ga. 24 ga. (1.25-mm 0.65-mm) steel and wood. The Standard Roofing Fastener can be used with several plates including the Accutrac Plate, Galvalume Plate, or the Plastic Locking Plate. The OMG Standard Roofing Fastener is Factory Mutual and Dade County approved.
Physical Data

• Fastener Length: 3" (75-mm)
• Thread Length: Full
• Thread Diameter: .220-in. (5.58-mm)
• Head Diameter: .435-in. (11.04-mm)
• Head Style: #3 Phillips Truss Head (#3 Phillips bit included)
• Coating: OMG CR-10 corrosion resistant coating exhibits less than 15% red rust after 30 Kesternich cycles. CR-10 coating exceeds F.M. Approval Standard 4470.
• Weight 21 pounds

Features & Benefits

• #12 thread diameter is Heavier than most "heavy duty" roofing fasteners.
• Deep buttress thread for high pullout resistance.
• Extra sharp drill point for quick installation in new or reroof applications.
• #3 Phillips truss head.
• Can be used with Accutrac System for improved roof top productivity.

Application

• The OMG Standard RoofGrip Drill Point Fastener must penetrate steel decks a minimum of 3/4-in. (20mm). Factory Mutual requires that fasteners penetrate the top flute.
• For OSB and plywood*, 3/4-in. (20-mm) penetration through the underside of the board is the minimum allowable. For wood deck (wood beams, wood plank, tongue & groove), 1-in. (25-mm) penetration is the minimum allowable.
• Using a screw gun, drive the fastener until a slight depression is seen in the insulation and the plate. On rigid cover boards, care must be taken not to strip the deck.
• The strength of different roof decks can vary widely and can be adversely affected by moisture and other conditions. Therefore, it is recommended that a fastener pull test be conducted to help evaluate deck condition and fastener suitability. Call OMG to schedule testing.

NOTE: Care must be taken not to overdrive the fastener. Fastener must be tight enough so that the plate doesn't turn. For best results, use a variable speed 02500 RPM screw gun.

To speed installation, this fastener can be used with the AccuTrac® System and is also available pre-assembled.

*FM does not approve OSB or plywood deck types.
