#14‑14 x 2" HWH Self‑Drilling Tek Screws w/Bonded Washer Strong‑Shield® Coated 1,500ct | HA1432C
Details

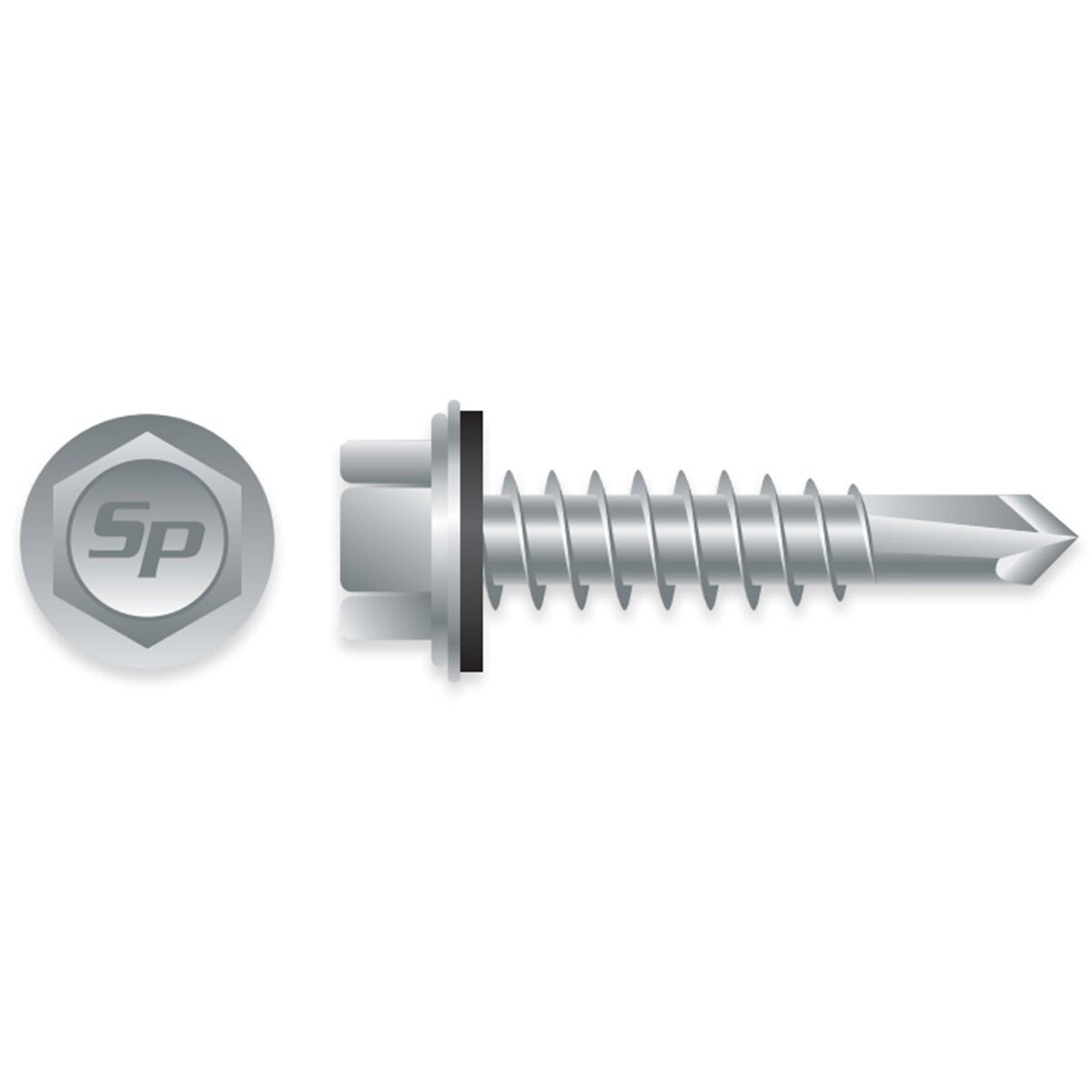

Strong-Point #14-14 x 2" Unslotted Indented Hex Washer Head Self-Drilling Tek Screws w/Bonded Washer Strong-Shield® Coated
Strong-Point #14-14 x 2" Unslotted Indented Hex Washer Head Self-Drilling Tek Screws with bonded sealing washers are designed for metal-to-metal fastening applications requiring a weather-tight seal and superior corrosion protection. The #3 self-drilling point delivers fast, consistent drilling performance through steel thicknesses from .060" to .220". Strong-Shield® coating provides exceptional corrosion resistance, rust protection, and acid rain protection while remaining compatible with ACQ, pressure treated, and fire treated lumber.
Features:
- #3 self-drilling point for metal-to-metal applications
- Unslotted indented hex washer head for stable driving
- Bonded washer provides a weather-tight seal
- Rust and acid rain protection
- ACQ, pressure treated and fire treated lumber compatible
- Exceeds 1,000 hour salt spray resistance
- Strong-Shield® premium corrosion resistant coating
Details:
- Head Type: Unslotted Indented Hex Washer Head
- Drive Size: 3/8"
- Thread Diameter: #14
- Threads Per Inch: 14
- Length: 2"
- Point: #3 Self-Drilling
- Bonded Washer O.D.: 5/8"
- Quantity: 1,500 pcs
- Weight: 41lb
Material Application:
- Attaches metal to metal
- Drill Capacity: .060" – .220"
- Recommended Drill Speed: 1750 RPM
Specifications:
- Meets ASTM C1513 for cold-formed steel framing connections
- Meets F.I.P.-1000.7 for torsional strength & drill speed
- Meets SAE J78 for performance & dimensional specifications
- Strong-Shield® Coated
The bonded washer provides a sealing barrier that helps prevent water intrusion at the connection point.
Strong-Shield® is a four-layer corrosion resistant coating system that provides rust protection, acid rain protection, and long-term performance in highly corrosive environments.
Coating Details:
- Coating: Strong-Shield®
- Salt Spray: 1,000 hrs.
- Kesternich: 15 Cycles
- Application: Used outdoors for high corrosive applications. Acid rain protection. ACQ compatible.
- Strong-Shield® is a high-grade metal surface processing technology that prevents corrosion. The coating system consists of four layers: a metallic zinc layer, a passivation, a layer of functional nano coating used as a sealer, and a high-grade anti-corrosion chemical conversion film.
