#12‑14 x 1‑1/2" HWH Self‑Drilling Tek Screws Strong‑Shield® Coated 3,000ct | H1224C
Details

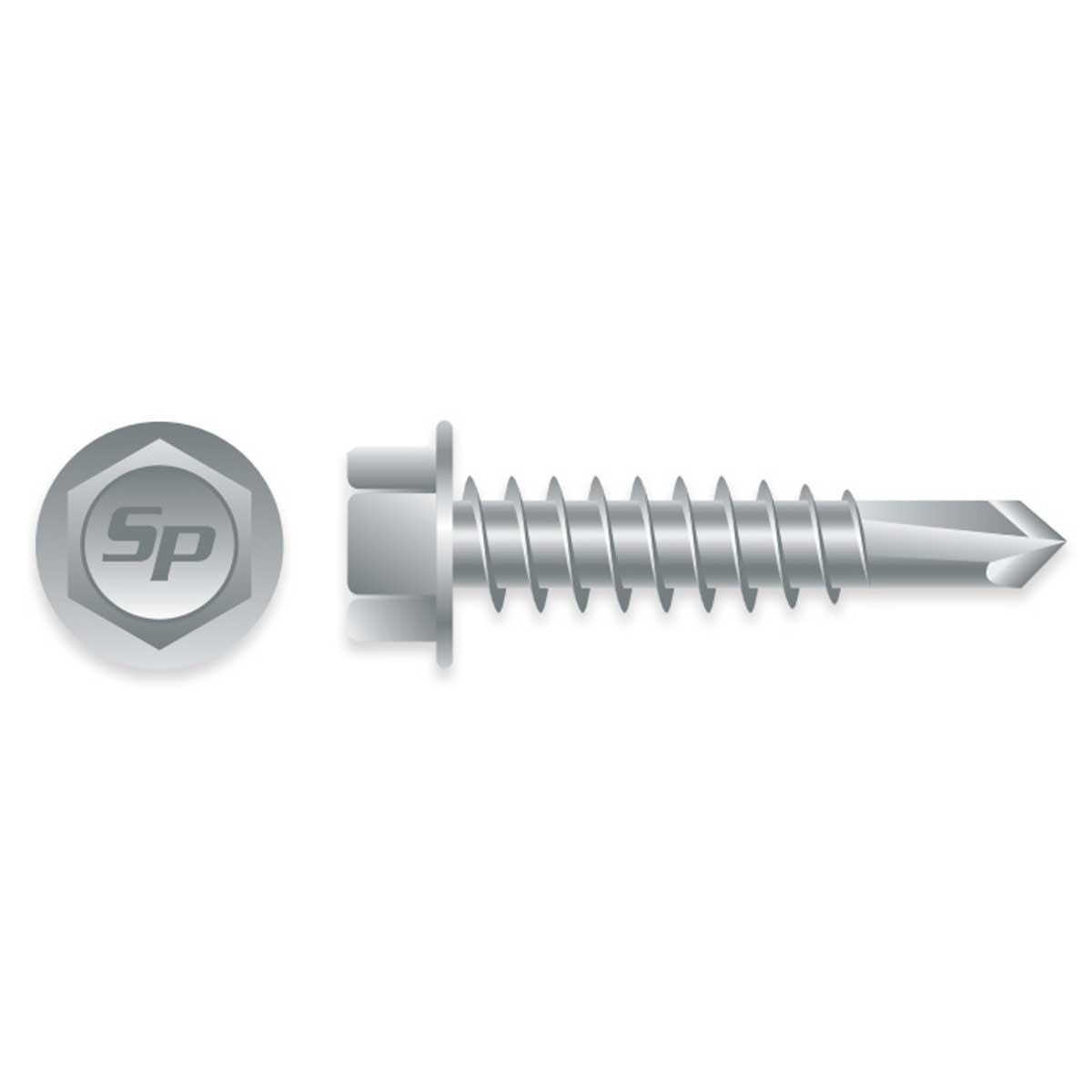

Strong‑Point #12‑14 x 1‑1/2" Unslotted Indented Hex Washer Head Self‑Drilling Tek Screws Strong‑Shield® Coated
Strong‑Point #12‑14 x 1‑1/2" Unslotted Indented Hex Washer Head Self‑Drilling Tek Screws are designed for metal‑to‑metal fastening applications requiring superior corrosion protection. The #3 self‑drilling point delivers fast, consistent drilling performance through steel thicknesses from .035" to .210". Strong‑Shield® coating provides exceptional corrosion resistance, rust protection, and acid rain protection while remaining compatible with ACQ, pressure treated, and fire treated lumber.
Features:
- #3 self‑drilling point for metal‑to‑metal applications
- Unslotted indented hex washer head for stable driving
- Rust and acid rain protection
- ACQ, pressure treated and fire treated lumber compatible
- Exceeds 1,000 hour salt spray resistance
- Strong‑Shield® premium corrosion resistant coating
Details:
- Head Type: Unslotted Indented Hex Washer Head
- Drive Size: 5/16"
- Thread Diameter: #12
- Threads Per Inch: 14
- Length: 1‑1/2"
- Point: #3 Self‑Drilling
- Quantity: 3,000 pcs
- Weight: 40lb
Material Application:
- Attaches metal to metal
- Drill Capacity: .035" – .210"
- Recommended Drill Speed: 2000 RPM
Specifications:
- Meets ASTM C1513 for cold‑formed steel framing connections
- Meets F.I.P.-1000.7 for torsional strength & drill speed
- Meets SAE J78 for performance & dimensional specifications
- Strong‑Shield® Coated
Strong‑Shield® is a four‑layer corrosion resistant coating system that provides rust protection, acid rain protection, and long‑term performance in highly corrosive environments.
Coating Details:
- Coating: Strong‑Shield®
- Salt Spray: 1,000 hrs.
- Kesternich: 15 Cycles
- Application: Used outdoors for high corrosive applications. Acid rain protection. ACQ compatible.
- Strong‑Shield® is a high‑grade metal surface processing technology that prevents corrosion. The coating system consists of four layers: a metallic zinc layer, a passivation, a layer of functional nano coating used as a sealer, and a high‑grade anti‑corrosion chemical conversion film.
