1/4-20 x 3-1/2" Phillips Flat Head Reamer w/Wings Self-Drilling Tek Screws WAR Coated 800ct | R312W

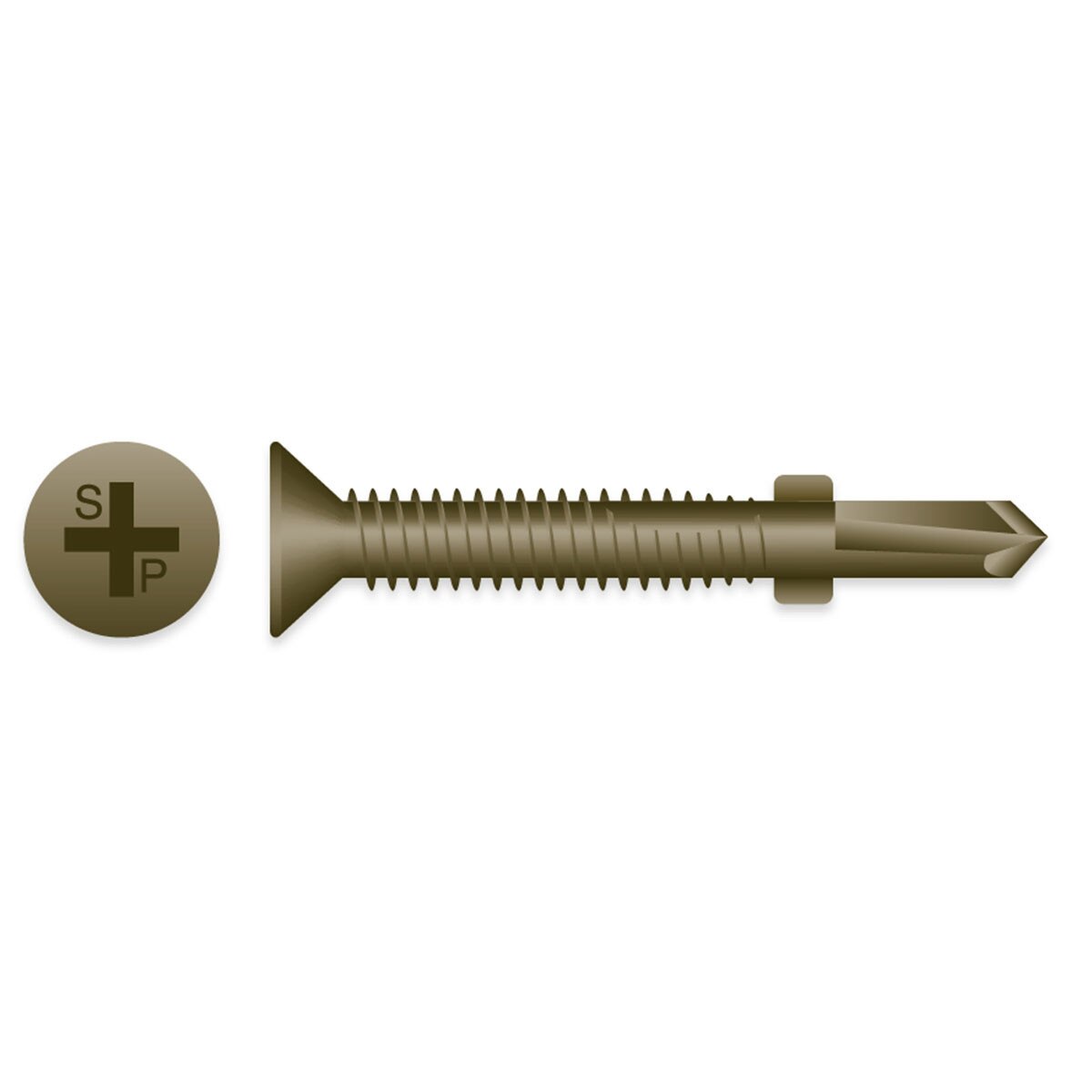

Strong-Point 1/4-20 x 3-1/2" Phillips Flat Head Reamer w/Wings Self-Drilling Tek Screws WAR Coated

Strong-Point 1/4-20 x 3-1/2" Phillips Flat Head Reamer w/Wings Self-Drilling Tek Screws are designed for attaching lumber or headers to steel. The reamer wings enlarge the hole in the wood before contact with the steel substrate, helping prevent jacking action and allowing materials to pull together tightly. The #4 self-drilling point delivers fast, consistent drilling through steel thicknesses from .110" to .375". The WAR coating system provides advanced corrosion protection for demanding outdoor applications and is compatible with ACQ, pressure-treated, and fire-treated lumber.

• #4 self-drilling point for steel applications
• Reamer wings prevent jacking action in wood
• Phillips flat head for flush mounting in countersunk holes
• WAR coated for enhanced corrosion protection
• ACQ, pressure-treated, and fire-treated lumber compatible
• Designed for attaching lumber or headers to steel

• Head Type: Flat Head Reamer w/Wings
• Drive Type: Phillips
• Thread Diameter: 1/4"
• Threads Per Inch: 20
• Length: 3-1/2"
• Point: #4 Self-Drilling
• Quantity: 800 pcs
• Weight: 30lb

• Attaches wood to metal
• Wood Range: 3/4" – 2-1/2"
• Drill Capacity: .110" – .375"
• Recommended Drill Speed: 1750 RPM

• Meets ASTM C1513 for cold-formed steel framing connections
• Meets F.I.P.-1000.7 for torsional strength & drill speed
• Exceeds 1,000 hrs. salt spray resistance
• WAR Coated
• ACQ, pressure-treated, and fire-treated lumber compatible
• Wings ream hole in wood preventing jacking action
• Used for attaching lumber or headers to steel

• Coating: WAR
• Salt Spray: 1000 hrs.
• Kesternich: N/A
• Application: Outdoor high-corrosion environments
• ACQ Compatible: Yes
• WAR is a three-layer coating system consisting of a metallic zinc layer, passivation layer, and anti-corrosion chemical conversion film.
