1/4" x 1 7/8" PHILLIPS WAFER HEAD ZINC PLATED S/D SCREWS 1,500ct | W117

1/4-24 x 1 7/8" Phillips Wafer Head Tek screws, Zinc Plated

These 1 7/8" length #3 Phillips drive Wafer Head ZINC PLATED Self-Drilling screws are 1/4" diameter (14 threads per inch) #3 Point. Zinc plated is a plating that is applied electrically to fasteners that prevents oxidation of steel by forming a protective barrier. Meets F.I.P.-1000.7 for torsional strength and drill speed. Meets ASTM A 510 for carbon steel manufacturing. Zinc plating meets ASTM B-117 for salt spray corrosion. Meets SAE J78 for performance & dimensional specifications. Each box contains approximately 1,500 screws (28 pounds)

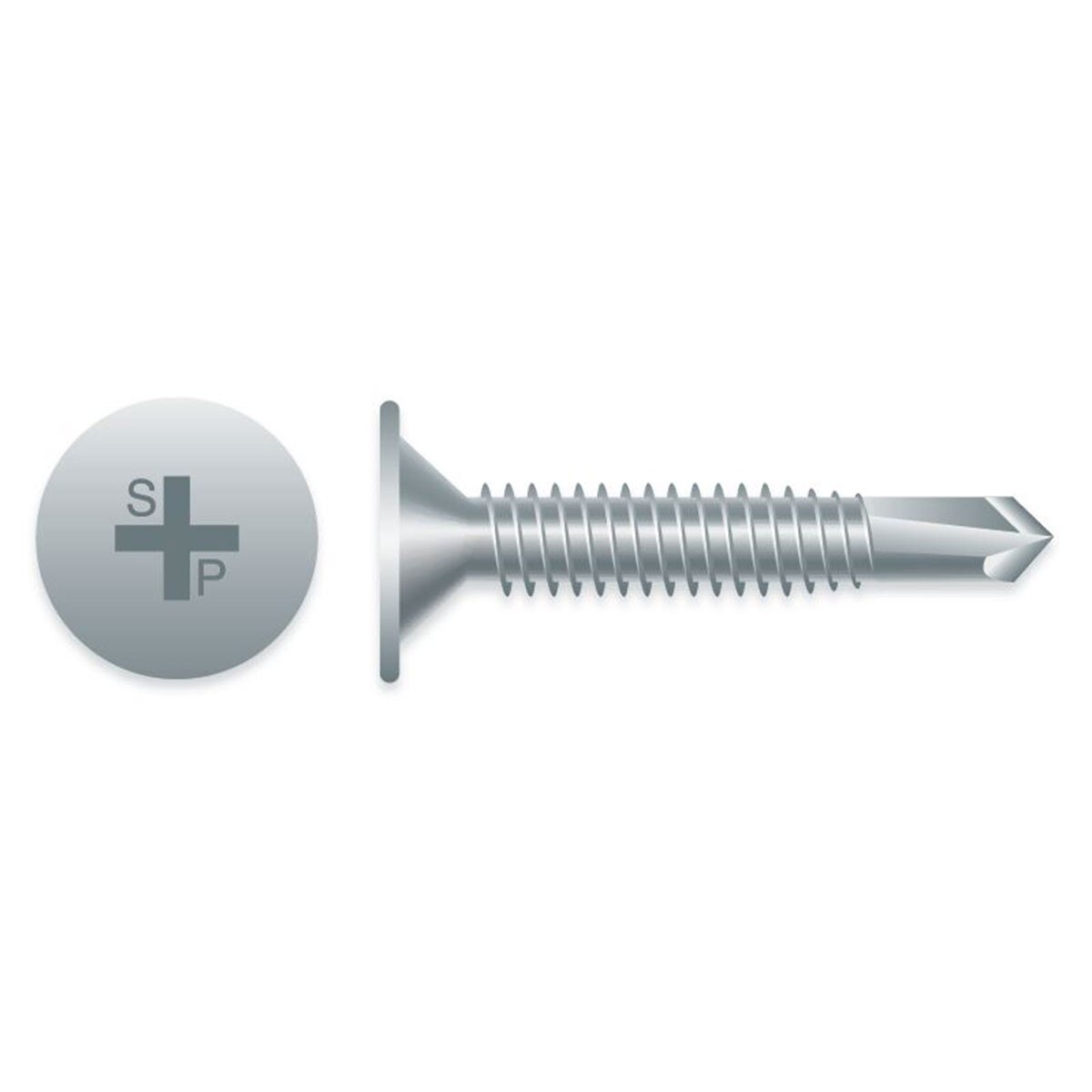

Product image is a likeness. Actual screw is not shown. Some screw lengths longer than 1-5/8" may follow the industry standard 2/3 partial thread length rule. Contact us if Full Thread is required for lengths beyond 1-5/8". Manufactured according to I.F.I. Standard.ÿ

Applications Include:
Attaching plywood to metal, drill capacity .048 - .220, drill speed 1750 RPM.
